Introducing JCI’s “Fast Track” Vessel Program
Contact us to learn more about our new “Fast Track” vessel program. Designated designs can be customized and built in the fraction of the time it would take for a custom vessel.
Add or Remove Nozzles
Optional Inlet and Outlet Nozzle Sizes
Customize Nozzle Orientation
Extra NDE Optional:
RT-1 Radiography
100% Radiography of Butt Welds
100% UT of Category D Welds
100% MT of Fillet Welds
PWHT Optional
Customize Paint System and Color
6” CL150 Gas Coalescing Filters
JCI Model JVCS-2-6-250-1-336
2” CL150 inlet/outlet
Design: 250 psig @ 230°F/-20°F
Corrosion Allowance: 1/16″
(1) Jonell JPMG-336-R-CE Coalescing Element
6” CL150 Gas Coalescing Filters
JCI Model JVCS-2-6-285-1-336
2” CL150 inlet/outlet
Design: 285 psig @ 100°F/-49°F
Corrosion Allowance: 1/16″
(1) Jonell JPMG-336-R-CE Coalescing Element

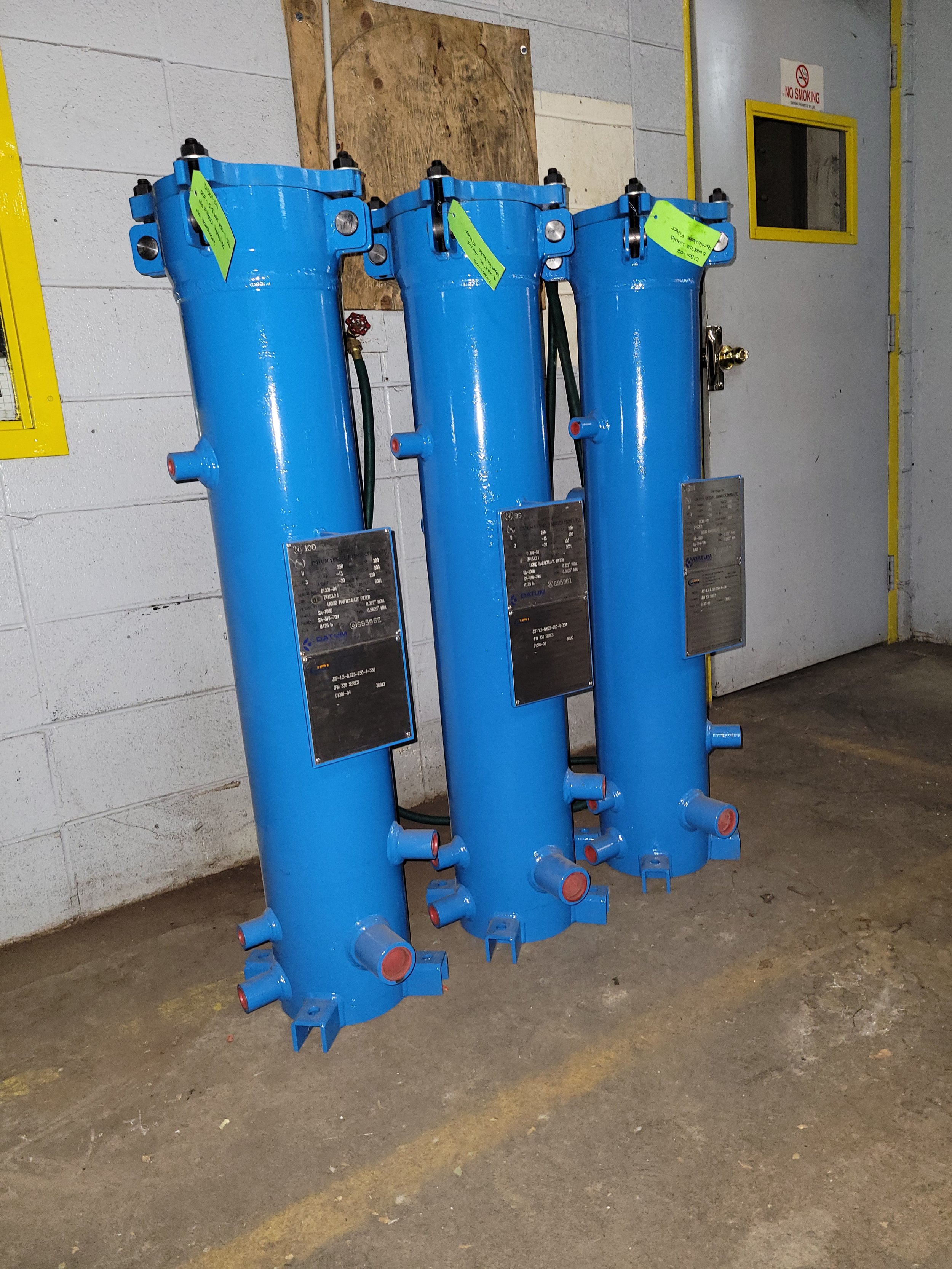

8” CL150 Gas Coalescing Filters
JCI Model JVCS-3-8-250-1-536
3” CL150 inlet/outlet
Design: 250 psig @ 230°F
MDMT: -20°F
Corrosion Allowance: 1/16″
(1) Jonell JPMG-536-R-CE Coalescing Element
8” CL600 Gas Coalescing Filters
JCI Model JVCS-3-8-1380-1-536
3” CL600 inlet/outlet
Design: 1380 psig @ 180°F
MDMT: -20°F
Corrosion Allowance: 1/8″
(1) Jonell JPMG-536-R-CE Coalescing Element
8” CL600 Gas Coalescing Filters
(Two Stage)
JCI Model JVC-3-8-1480-1-336
3” CL600 inlet/outlet
Design: 1480 psig @ 100°F
MDMT: -43°F
Corrosion Allowance: 1/8″
(1) Jonell JPMG-336-R-CE Coalescing Element
16” CL600 Gas Coalescing Filter
JCI Model JVCS-6-16-1440-3-336-FLG
6” CL600 RFLWN inlet/outlet
Design: 1440 psig @ 130°F
MDMT: -49°F
Corrosion Allowance: 1/8″
Flanged auxiliary connections
(3) Jonell JPMG-336-R-CE Coalescing Elements
18” CL600 Gas Coalescing Filter
JCI Model JVC-6-18-1480-4-336
6” CL600 RFLWN inlet/outlet
Design: 1480 psig @ 100°F
MDMT: -20°F
Corrosion Allowance: 1/16″
Insulated and heat traced for freeze protection
(4) Jonell JPMG-336-R-CE Coalescing Elements
20” CL600 Gas Coalescing Filter
JCI Model JVCS-6-20-1440-6-336-NPT
6” CL600 RFLWN inlet/outlet
Design: 1440 psig @ 130°F
MDMT: -49°F
Corrosion Allowance: 1/8″
Threaded auxiliary connections
(6) Jonell JPMG-336-R-CE Coalescing Elements
20” CL600 Gas Coalescing Filter
JCI Model JVCS-6-20-1440-6-336-FLG
6” CL600 RFLWN inlet/outlet
Design: 1440 psig @ 130°F
MDMT: -49°F
Corrosion Allowance: 1/8″
Flanged auxiliary connections
(6) Jonell JPMG-336-R-CE Coalescing Elements
24” CL600 Gas Coalescing Filter
JCI Model JVCS-8-24-1440-9-336-FLG
8” CL600 RFLWN inlet/outlet
Design: 1440 psig @ 130°F
MDMT: -49°F
Corrosion Allowance: 1/8″
Flanged auxiliary connections
(9) Jonell JPMG-336-R-CE Coalescing Elements
28” CL600 Gas Coalescing Filter
JCI Model JVCS-10-28-1440-13-336-FLG
10” CL600 RFLWN inlet/outlet
Design: 1440 psig @ 130°F
MDMT: -49°F
Corrosion Allowance: 1/8″
Flanged auxiliary connections
(13) Jonell JPMG-336-R-CE Coalescing Elements
